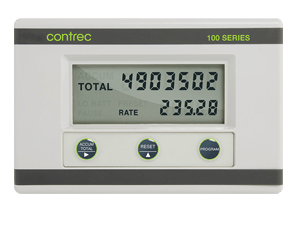

Field Mounting Rate Totaliser - Loop Powered

The 104D Loop Powered Rate Totaliser requires no external power and is designed to operate with turbine, positive displacement and paddlewheel flowmeters.

Applications include irrigation systems and pipelines, and as a replacement for mechanical registers.

Loop Powered

The 104D is loop powered via a 4-20mA output.

Watertight Field Mounting Enclosure

The 104D Loop Powered Rate Totaliser is housed in a rugged yet attractive IP67 (Nema 4X)  rated polycarbonate enclosure which is completely watertight. This enables the instrument to be mounted directly on the flowmeter, panel mounted or wall mounted using a special universal bracket. A 2″ pipe mounting bracket is also available.

Fully User Programmable

K-factor, decimal point positions, filter  constants and time base are fully user programmable. Rate and Totals can also be displayed in different engineering units such as gallons per minute and barrels.
